We will design your air quality

Negative Pressure Unit

We will be the company that thinks of customers first and the company that customers are proud of first

What’s different?

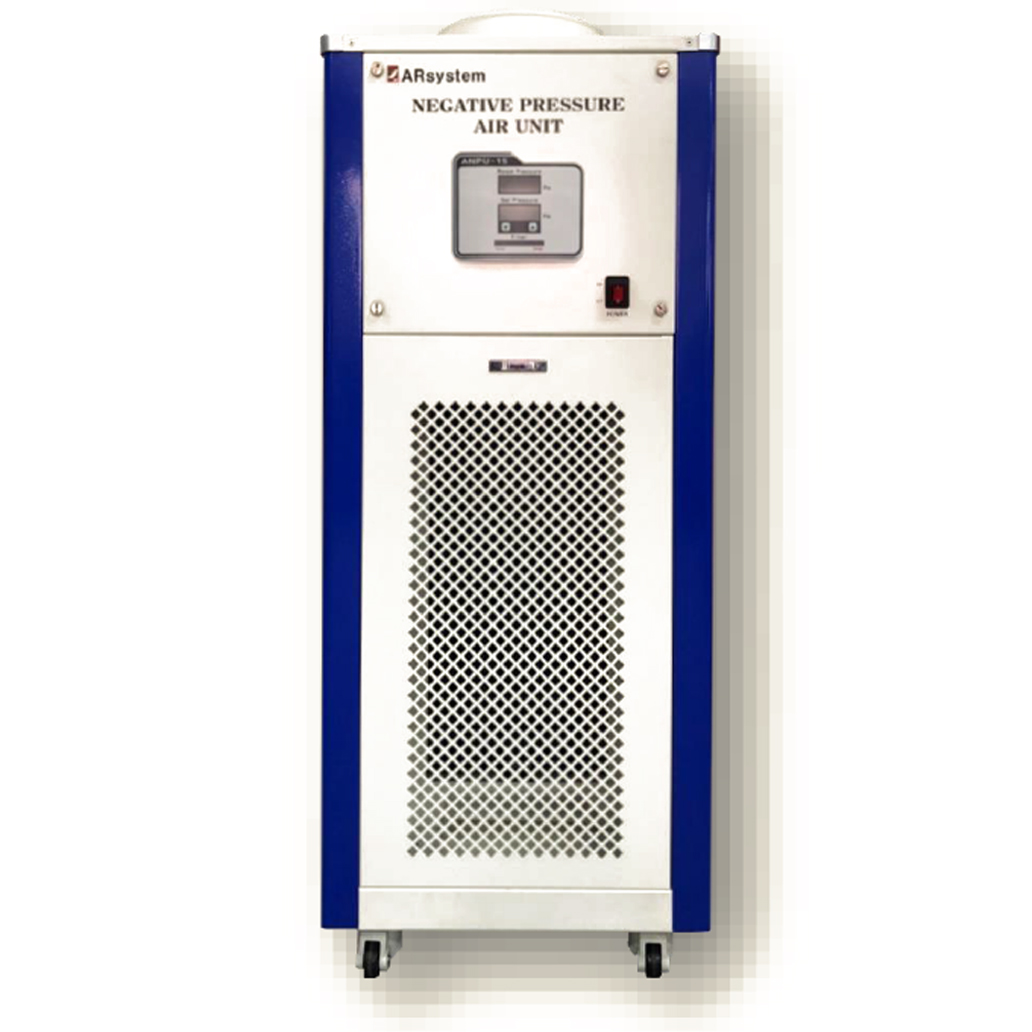

ANPU-15

public healthcenter/ screening center/ hospital/ negative pressure room/ etc.

negative_icon_01

Intelligent operation

automatic operation according to set pressure

negative_icon_01

Positive pressure unit

combined use is available

negative_icon_01

Reliable technical skills

air-conditioning field specialized company

negative_icon_01

Replacement time check

filter status alarm

negative_icon_01

Low noise

BLDC motor installed

negative_icon_01

CE marked

European Norm

It keeps the negative pressure constant by our own Micom development technology and a BLDC motor.
The negative pressure unit is optimized by reflecting the noise sensitivity of the installation location.

Installation location Air volume Spaces (height 2.5m) Noise level
Indoor installation-negative pressure isolation room (where patients reside) 10CMM 20m2 49dB
Indoor installation-screening center, public health center (where patients stay temporarily) 15CMM 30m2 54dB
Outdoor installation 19CMM 40m2 62dB
* The spaces above are based on a floor height of 2.5m and may vary depending on the degree of external air inflow.
* Please select the installation location first.

“ A different control method ”
We make the difference.

It keeps the negative pressure constant by our own Micom development technology and a BLDC motor.

Q. Why is it important to maintain the set pressure?

A.

If the set pressure is not maintained, it is inconvenient to change the setting manually each time the pressure is set excessively. Also, it is important to maintain the pressure because excessive negative pressure causes headaches.

Negative Pressure Unit

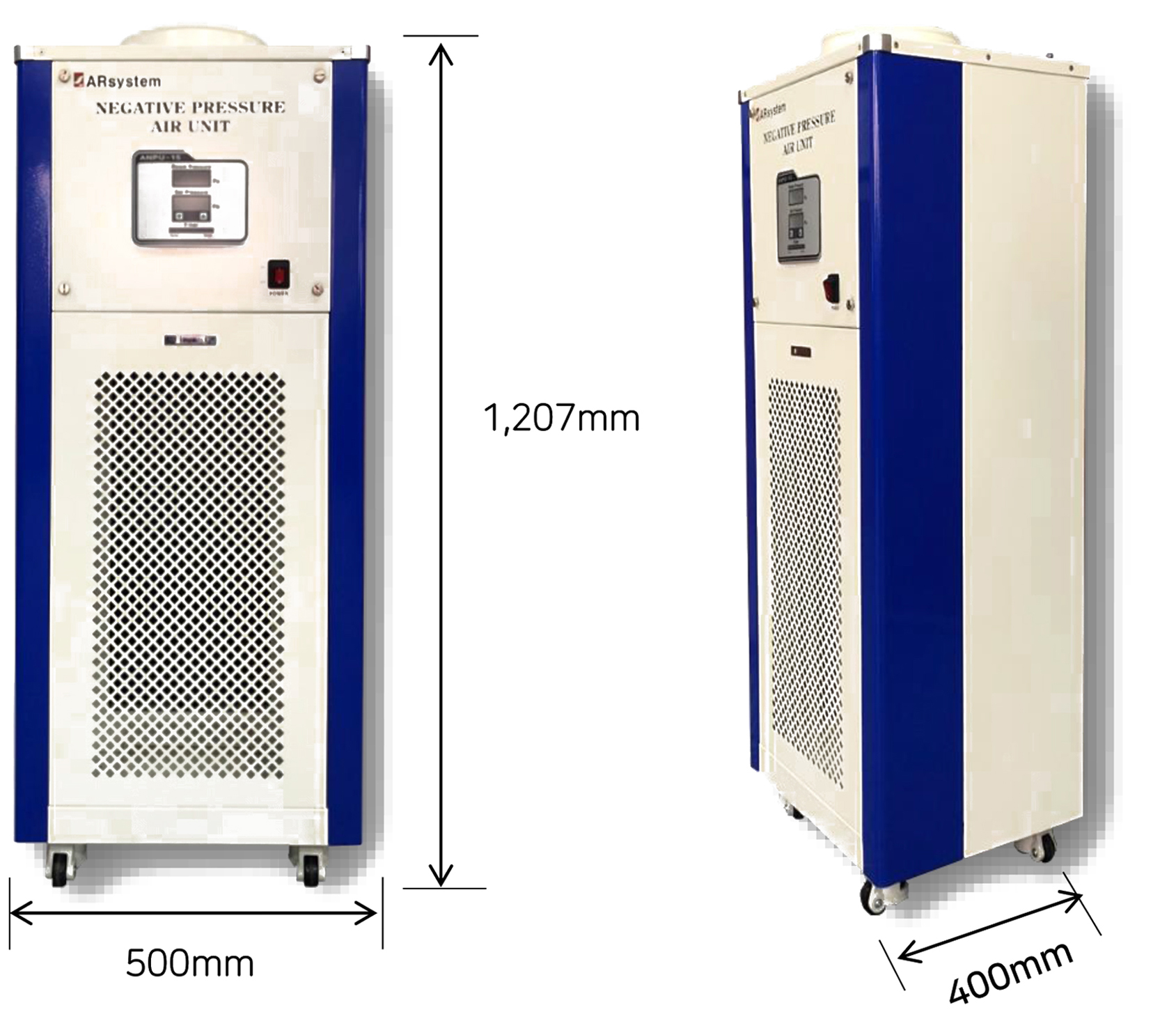

Specification

Negative Pressure Unit
Model ANPU-15
Fan Type BLDC Fan
Air Capacity 22㎥/min(Max)
Power 420W(Max)
Filter Step 1 Antibacterial chloridized vinyl filter
Step 2 HEPAfilter filter -99.97%@0.3㎛
Option Remote monitor
Noise Level 37~54dB(4~15㎥/min)
Weight 52kg
Dimensions 500(W) x 1,207(H) x 400(D)
Voltage AC 200V, 50/60Hz

MULTI ROOM

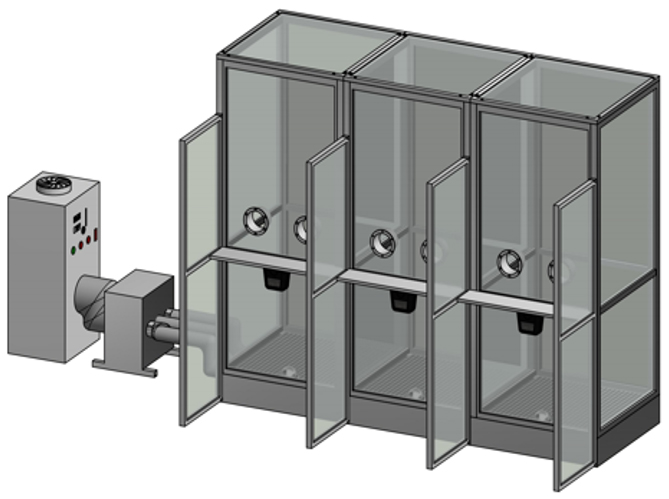

A-type

A-type_img

MODEL NO :K-QC 2020

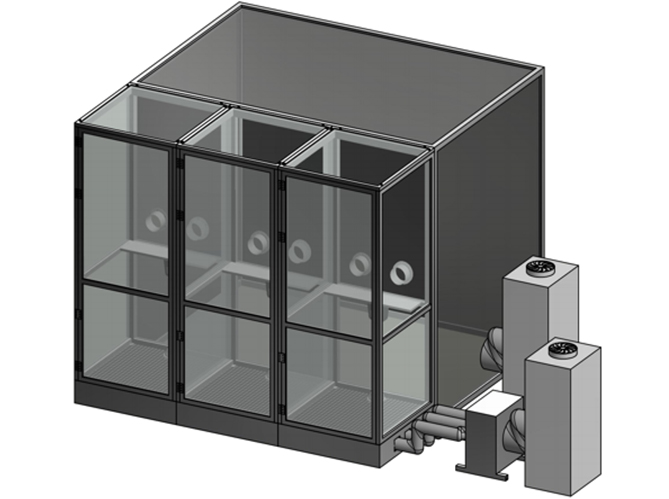

A-Extended Type

A-Extended Type_img

MODEL NO :K-QC 2020-2

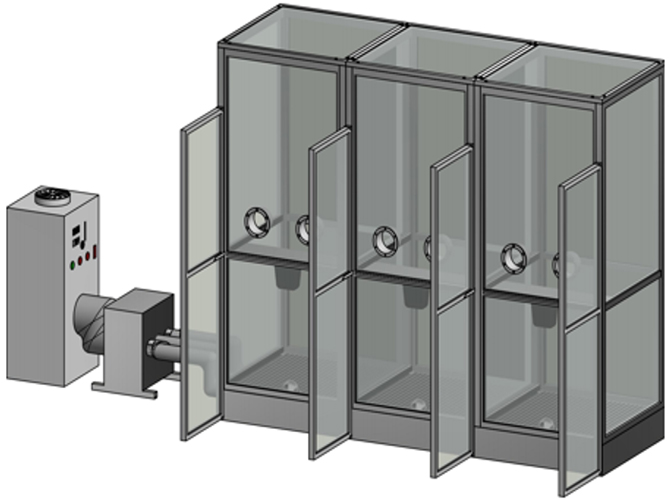

B-type

B-type_img

MODEL NO :K-QC 2020-1

Walking Thru (COVID-19)

1. The structure used SUS316(Medical stainless steel)
2. Please refer to the manual for detailed description of accessories
3. This product is prefabricated for easy transportation and installation.
※ packing size : 2400 x 1500 x h:1200(mm)

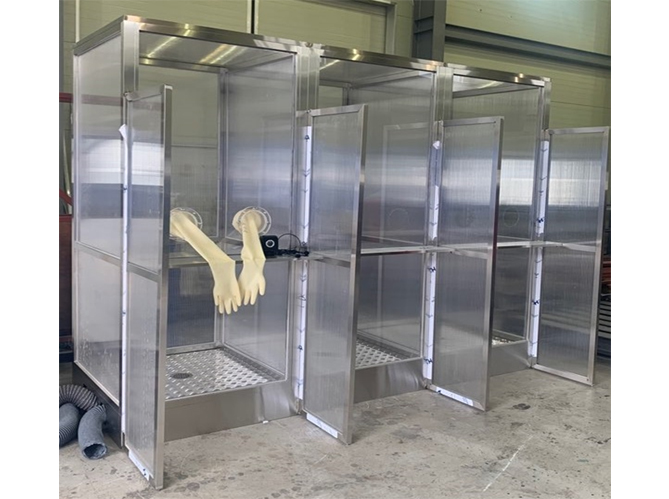

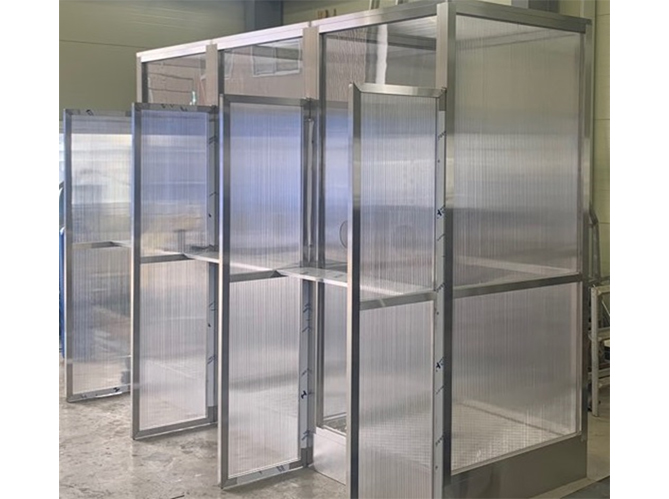

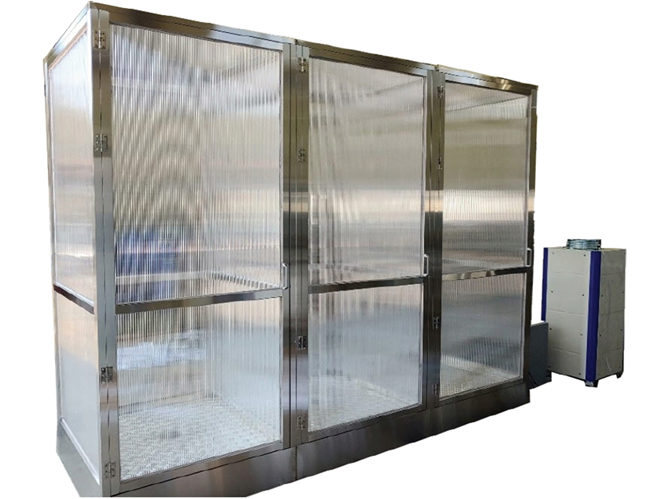

Walk-Through example by Negative pressure air unit

Walk-Through_img_01
Walk-Through_img_02
Walk-Through_img_03
