Humidifier

We will be the company that thinks of customers first and the company that customers are proud of first

EL Series

Negative Pressure Unit

TOUCH SCREEN CONTROL

The all new touch screen controller is easy to navigate and contains the information the user needs

INNOVATIVE NETWORK INTEGRATION

Standard building automation support with integrated BACnets

CONDAIR STEAM CYLINDER

The Condair steam cylinder are reliable and proved, they last drastically longer than any competitor product. Cylinder and the auto-adaptive water control reduce waste water to a minimum

Technical data

SPECIFICATION EL 005 EL 010 EL 020 EL 030 EL 050 EL 075 EL 100 EL 150 EL 200
Capacity: lbs/hr 1-5 2-10 4-20 6-30 10-50 15-75 20-100 30-150 40-200
Capacity: kg/hr 1-2 1-5 2-9 3-14 5-23 7-34 9-46 14-68 18-91
Input KW max 1.9 3.7 7.5 11.2 18.7 28.1 37.4 56.1 74.8
Voltage 100-120 208-600 208-600 208-600 208-600 208-600 208-600 208-600 208-600
Phase 1 1 1 and 3 3 3 3 3 3 3
No. of Cylinders 1 1 1 1 1 1 1 2 2
Built-on Blower Pack yes yes yes yes yes yes yes no no

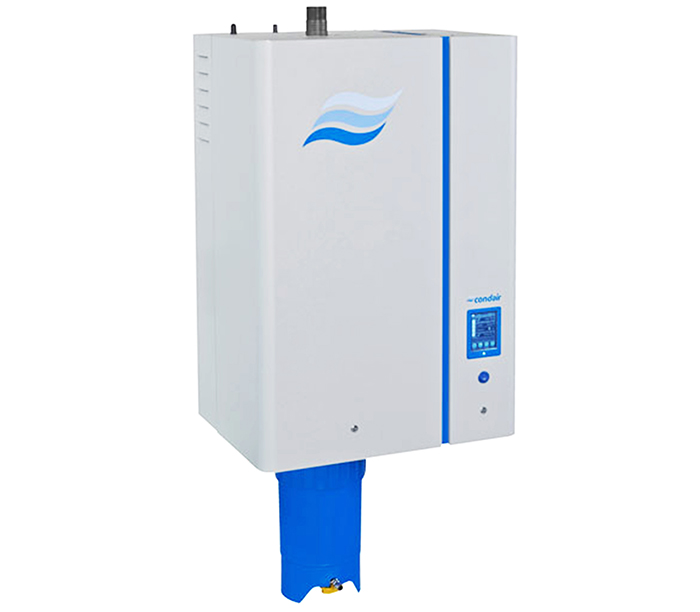

RS Series

Negative Pressure Unit

INNOVATIVE NETWORK INTEGRATION

Standard building automation support with integrated BACnet and internet connectivity for remote factory diagnosis

SCALE MANAGEMENT

The minerals precipitated from the water are continuously and automatically separated and fed from the steam cylinder to the scale collector tank: Long operation times are guaranteed

TOUCH SCREEN CONTROL

The all new touch screen controller is easy to navigate and contains the information the user needs

Technical data

Housing sizes Small Medium Large 2x Medium Mater-Slave 3x Medium Mater-Slave 3x Medium Mater-Slave
Product reference RS 5 RS RS 10 RS 16 RS 20 RS 24 RS 30 RS 40 RS 50 RS 60 RS 80 RS 50 RS 60 RS 80 RS 100 RS 120 RS 140 RS 160
Dimensions WxHxD mm 420 x 987 x 370 530 x 1,097 x 406 1,000 x 1,097 x 406 2x 530 x 1,097 x 406 3x 530 x 1,097 x 406 4x 530 x 1,097 x 406
Operating weight kg 40.2 65.8 132 131.6 197.4 263.2
Heating voltage Maximum steam output
400V 3Ph 50-60Hz kg/h 5.1 8.1 9.9 16.1 19.8 24.2 29.8 40.0 49.6 59.6 80.0 19.8 + 29.8 2x29.8 2x40.0 2x29.8 + 40.0 3x40.0 2x29.8 + 2x 40.0 4x40.0
230V 1Ph 50-60Hz kg/h 5.0 8.0 9.8 - - - - - - - - - - - - - - -
Control voltage 230V 1Ph 50-60Hz
Conformity CE, VDE, SVE

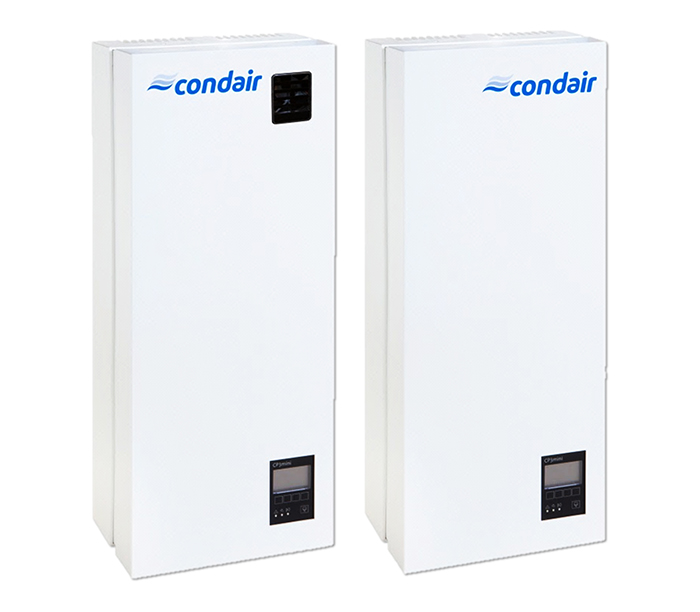

CP mini Series

Negative Pressure Unit

Condair CP3mini PR for direct room humidification

The Condair CP3mini PR with built-in fan distributes the steam perfectly throughout the entire room. The flow direction can be set through adjustment of the louvers.

Condair CP3mini PD for duct humidification

The Condair CP3mini PD releases the steam directly into the duct via the steam hose and the manifold.

Technical data RC4 DC4

NORDMANN RC 4 NORDMANN DC 4
Heating voltage 230V1~/50..60Hz
240V1~/50..60Hz
200V2~/50..60Hz
Steam output 2 kg/h 4 kg/h 2 kg/h 4 kg/h
Max. electrical output 1.6 kW 3.1 kW 1.6 kW 3.1 kW
Fan air volume 22 m³/h
Sound pressure level 37 dB(A)
Max. room sixe (guideline) 200 m³ 400 m³
Operating weight empty 6.2 kg
Operating weight filled 11 kg
Dimension (W x H x D) 265 mm x 650 mm x 175 mm
Control signals on/off (24VDC), 0-5 VDC, 1-5 VDC, 0-10 VDC, 0.20mA, 4-20mA
Water quality untreated drinking water with a conductivity of 125..1250μS/츠
Admissible water pressure 1..10 bar
Admissible water temperature 1..40 °C
Admissible ambient temperature 1..40 °C
Admissible ambient humidity max. 75%rF
Admmissible duct air pressure -0.8..0.8 kPa
Protection IP20
Conformity CE, VDE, GOST
RC = for direct room humidificationDC = for duct humidification

DL Series

Negative Pressure Unit

Fit from smallest AHU Humidifier Section (W450, H450) to biggest (W8400, H4000)

Section length between 600 – 900 mm only, saving AHU section if compares with common high pressure systems

Ideal for retrofitting old washer and media humidifiers

Maximized evaporative area

Easy and fast to assembly

Technical data

Dimensions / Weight Type A (with booster pump) Type B (with booster pump)
Absorption distance in AHU / duct (min-max) 600-900mm
Width AHU / duct (min-max) 450-4,500mm
Height AHU / duct (min-max) 450-4,500mm
Central unit HxWxD 800 x 500 x 250mm
Central unit weight Approx. 54kg Approx. 35kg
Control unit HxWxD 450 x 315 x 1900mm
Control unit weight Approx. 14kg
Hydraulic
Humidification capacity 10-1,000kg/h
Nozzle pressure 3-7bar
Nozzle sizes 1.5, 2.5, 3.0, 4.0, 5.0kg/h @ 4bar
Water quality requirement Reverse osmosis water 0.5-15.0μS/cm
Electric
Supply voltage / current control unit 200-240VAC / 50-60Hz, max 6A
Control booster pump motor Continuous with freuency converter
Control unit power consumption 55-65VA
Motor rating booster pump Approx. 10VA per 10kg/h spray capacity
Frequency converter Yes No
Control accuracy 7 stems: ±4%RH
15 stems: ±2%RH
31 stems: ±2%RH
7 stems: ±4%RH
15 stems: ±2%RH
31 stems: ±2%RH
Communication
Remote poerating & fault indication board Yes
Modbus RTU Yes
BACnet IP and BACnet MSTP slave mode Yes
Air
Pressure drop (2m/s) Approx. 40Pa
Max. air velocity 3m/s without droplet eliminator. 4m/s with droplet eliminator
Air finter quality before humidifier F7 (EU7) or better
Max. recommended air temp 60°C (before humidifier)
Larger units available on demand. Higher temperatures available on demand. Control accuracy may vary depending on various external factors, e.g. temperature.

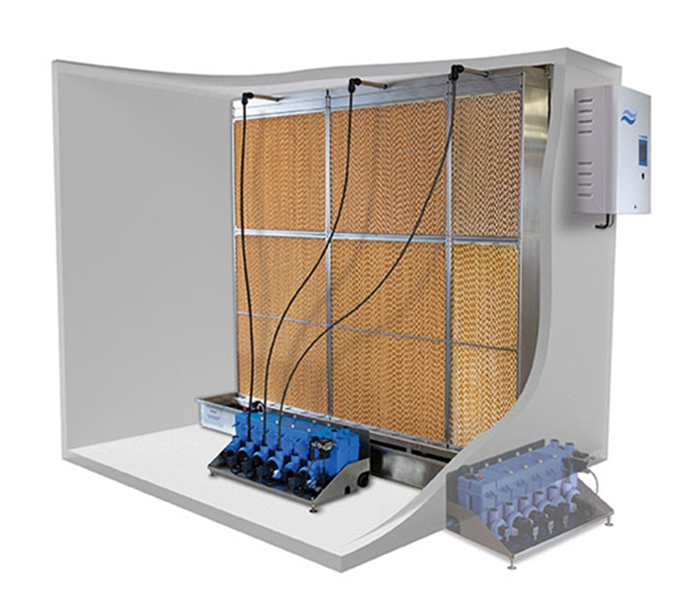

ME Series

Negative Pressure Unit

Innovative hydraulic design can be installed inside or outside the AHU

Increased focus on low energy and high efficient buildings

Suitable for a wide range of applications

Significant reduction in energy consumption

Quiet operation, with long-life components

Stage control as standard

Wide range of install, hygiene, and communication options

Modular design with built in redundancy

Technical data

Admissible water supply pressure PSI (bar) Admissible water temp F (°C) Power supply (Vac / Ph / Hz) Power consumption (W) Control panel IP rating Water connections Inlet / Outlet in (mm)
14.5-72.5 (1-5) 41-68 (5-20) 110-250 / 1 / 50/60 85-278 IP2X 5/8" / 1-1/8" (15 / 28)
Material Composition Monded glass fiber media with anti-microbial impregnation
Certifiaction UI900
Dry Weight 3.43 lb/ft3 (55 kg/m3)
Wet Weight 9.67 lb/ft3 (155 kg/m3)
Recommended Water Flow Rate Recommended min. 2 times the required evaporation rate
Maximum Media face Velocity 689 fpm (3.5 m/s wighout droplet separator)
886 fpm (4.5 m/s with droplet separator
Maximum Air Temerature 140 °F (60°C)
Maximum Water Temperature 68 °F (20°C)

ABS Series

Negative Pressure Unit

Versatile

· 120 or 360 degree spray angle
· Wall or ceiling mounted

Most hygienic of its kind

· Electronical controlled rinsing and small reservoir
· Cyclic descaling process every 30 seconds guarantees no stagnant water

Precise adaptation to ambient conditions

· On/off or 0 – 10V control signal

Easy to install

· Connect to water mains

Technical data

Condair ABS3 120
Condair ABS3 460
Capacity of Humidification 1.0…6.5 l/h
Air flow 280 m³/h
Power consumption 230V / FN 230 W
Power consumption 115V / FN 230 W
Water quantity 0.055 l
Operating temperature +1…35°C, 0…100% H.R. (opcional -2°C)
Pressure in the water connection 1…10 bar

RO System

Negative Pressure Unit

System characteristics

Reduction of scale and other minerals down to 1-3%

Maximal flexibility - complete standalone device or separate components for the configuration of complex individual solutiorns

perfect integration in systems with condair RS humidifiers

Technical data

Contair RO-A 40 100 200 300
Permeate (L/h) @ 5°C and 2bar(41°F and 29 PSI) 40(255 gpd) 100(635 gpd) 200(1270 gpd) 300(1900 gpd)
Permeate (L/h) @ 15°C and 2bar (59°F and 29 PSI) 70(445 gpd) 140(890 gpd) 300(1900 gpd) 400(2535 gpd)
Max Permeate flow/day (m³/d) 1.68 3.36 7.2 9.6
Tank size L (gal) 18 (4.75) 18 (4.75) 132 (35) 132 (35)
Recovery hard water 50%
Recovery hard water 70%
Inlet pressure 1.5-6 bar (21.8-87.0 PSI)
Water temperature 5-20°C (41-68°F)
Salt rejection rate 95-98%
Power supply 120 V / 1 ~ / 60 Hz
Power consumption (W) 600
Connection and dimension
Inlet water 3/4" NPT
Permeate 3/4" NPT
Drain 9 mm (0.35")
Dimensions (H x D x W) 815mm x 572mm x 485mm (32.1" x 22.5" x 19.1")
